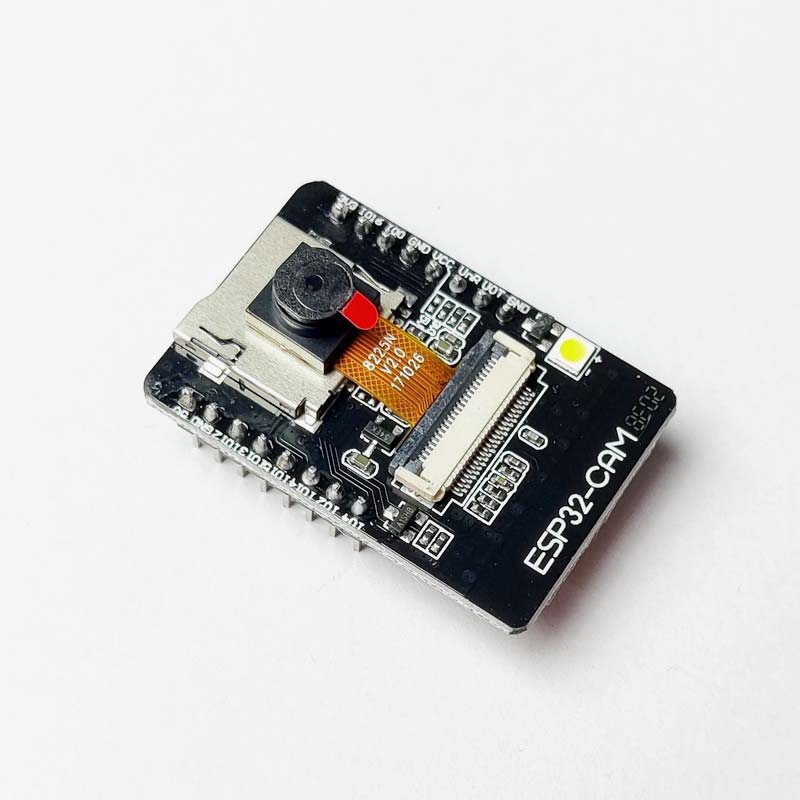

The ESP32 Camera Development Board WiFi+Bluetooth Module with OV2640 is built around the powerful ESP32 chipset, combining wireless communication and camera functionality in a single compact board. Designed for advanced IoT and embedded vision projects, this board supports both WiFi (802.11 b/g/n) and Bluetooth 4.2, enabling seamless wireless data transmission.
Equipped with the OV2640 2MP camera module, the ESP32-CAM supports UXGA resolution up to 1600 × 1200, delivering clear images and smooth video output. With multiple frame rate options—UXGA at 15 fps, SVGA at 30 fps, and CIF at 60 fps—it is suitable for real-time monitoring and imaging tasks.
The board includes 32Mbit Flash, 520KB SRAM, and 4MB PSRAM, providing sufficient memory for image buffering and processing. It offers 9 configurable I/O pins, supports both IPEX and PCB antennas, and operates on a 3.6V to 5V power supply, making it flexible for various deployment scenarios.
Whether you are building a smart surveillance system, IoT camera, or wireless image-processing project, the ESP32-CAM offers an excellent balance of performance, size, and cost.
ESP32 Camera Development Board Features & Specifications
Core Specifications
-
ESP32-CAM development board with OV2640 / RHYX-M21-45 camera
-
2.0 Megapixel Color CMOS camera
-
UXGA resolution: 1600 × 1200
-
32Mbit Flash memory
-
520KB SRAM + 4MB PSRAM
-
9 fully configurable GPIO pins
-
Operating voltage: 3.6V ~ 5V
-
WiFi: 802.11 b/g/n/e/i
-
Bluetooth: v4.2
-
Supports IPEX and PCB antennas
Camera Performance
-
UXGA/SXGA: 15 fps
-
SVGA: 30 fps
-
CIF: 60 fps
-
RGB565 / RGB555 output support
-
Image area: 3590µm × 2684µm
Applications of ESP32 Camera Development Board
Ideal Use Cases
-
IoT-based surveillance camera systems
-
Wireless web cameras
-
Smart home security solutions
-
Image processing projects
-
Digital still cameras
-
PC multimedia and vision-based applications
-
Smart doorbells and motion detection systems
