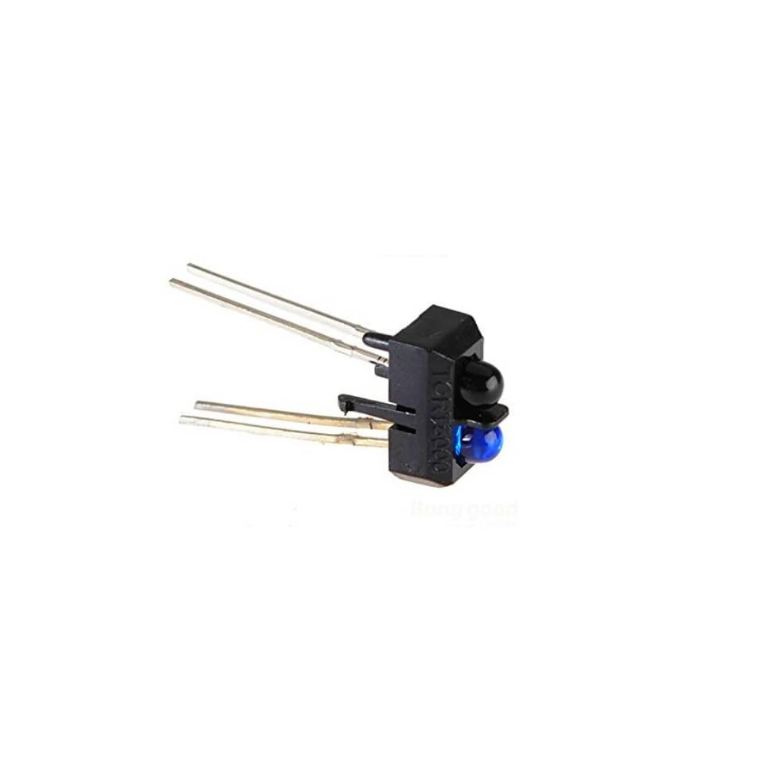

The VISHAY TCRT5000L Reflective Photo Interrupter is a compact and reliable optical sensing solution engineered for precise object detection and reflectance-based sensing. The sensor integrates a 950 nm infrared LED emitter and a phototransistor detector in a robust through-hole, leaded package that effectively blocks visible light interference.
With a peak operating distance of 2.5 mm, the TCRT5000L Sensor delivers consistent performance even in environments with ambient daylight. Its typical output current of 1 mA ensures stable signal processing, making it suitable for automation systems, industrial equipment, and sensing & instrumentation applications.
Manufactured to meet modern compliance standards, the TCRT5000L is lead (Pb)-free and supports reliable soldering processes. Whether used in industrial automation, object detection, or position sensing, this TCRT5000L Reflective Photo Interrupter offers long-term stability and high accuracy.
Key Features of TCRT5000L Sensor
-
Phototransistor detector for reliable signal output
-
2.5 mm peak operating distance for precise short-range sensing
-
1 mA typical output current under test conditions
-
Integrated daylight blocking filter
-
950 nm infrared emitter wavelength
-
Lead (Pb)-free, RoHS-compliant soldering released
-
Through-hole mounting for easy PCB integration
Technical Specifications
Electrical & Optical Parameters
-
Forward Voltage (Vf): 1.25 V
-
Reverse Voltage (Vr): 5 V
-
Maximum Forward Current: 60 mA
-
Emitter Wavelength: 950 nm
-
Detector Type: Phototransistor
Mechanical Details
-
Package Type: Through Hole / Leaded
-
Lead Spacing: 15 mm
Applications of TCRT5000L Reflective Photo Interrupter
-
Industrial automation systems
-
Sensing & instrumentation equipment
-
Object detection and proximity sensing
-
Position and motion detection
-
Reflective encoder systems
-
Robotics and embedded electronics projects
Package Includes
-
1 × Vishay TCRT5000L Reflective Photo Interrupter
(15 mm, 60 mA, 5 Vr, 1.25 Vf, Phototransistor Output)
