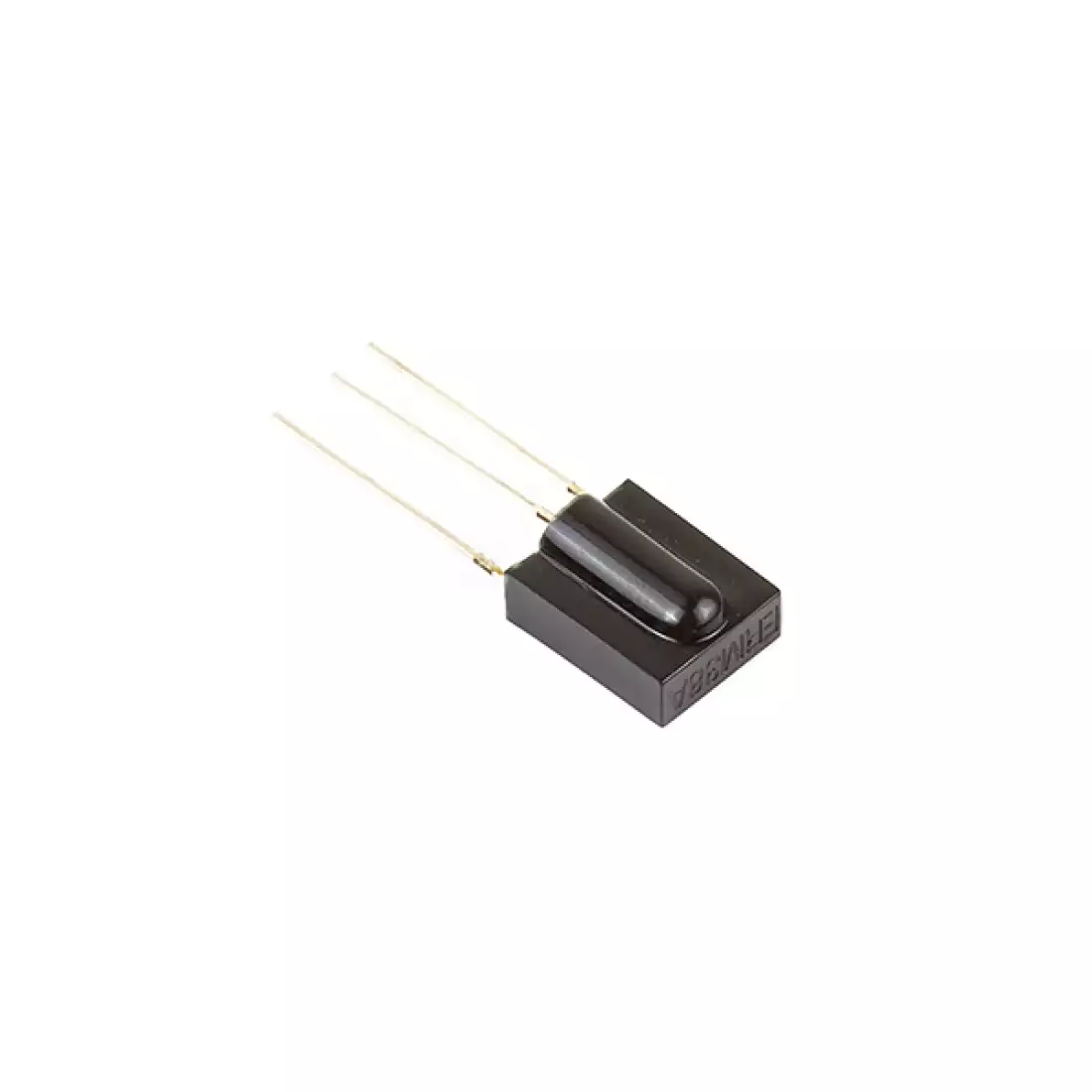

TSOP1738 IR Receiver Plastic (Through Hole)

The tsop1738 is a reliable IR receiver tsop 1738 module featuring an integrated PIN photodiode and preamplifier in a compact plastic through-hole package. It is optimized to receive only 38kHz modulated infrared signals, ensuring stable performance even in environments with sunlight or fluorescent lighting.

The output is active low, meaning the signal goes LOW when a valid IR signal is detected. Internal circuitry such as a bandpass filter, automatic gain control (AGC), and integrator stage effectively suppress ambient light interference, making it superior to basic IR sensors.

How TSOP1738 Works

When an IR source emitting 38kHz modulated signals is detected, the TSOP1738 processes the signal through its internal amplifier and filter stages. The decoded output is then provided as a clean digital signal compatible with TTL and CMOS logic, making it easy to interface with Arduino, Raspberry Pi, PIC, and other microcontrollers.

Key Features of TSOP1738 IR Receiver

• Integrated photo detector and preamplifier in one package

• Tuned specifically for 38kHz PCM frequency

• High immunity to ambient light and electrical noise

• Active LOW output

• TTL & CMOS compatible

• Low power consumption

• Supports continuous data transmission up to 2400 bps

• Suitable burst length: 10 cycles per burst

• Compact through-hole plastic package

Technical Specifications – TSOP1738

• Supply Voltage: 5V

• Current Consumption: 0.4 mA to 1.0 mA

• Minimum Irradiance (Ee): 0.35 mW/m² (typ.)

• Detection Angle: 90°

• Operating Frequency: 38 kHz

• Operating Temperature: –25°C to +85°C

• Package Type: Plastic, Through Hole

• Dimensions: 12.5 × 10 × 5.8 mm

Applications of TSOP1738 IR Receiver

• IR Remote Control Receivers (TV, AC, Set-Top Box, Home Theatre)

• Obstacle Avoidance Robots

• Proximity Detection Circuits

• Arduino & Microcontroller Projects

• Home Automation Systems

• Security & Intruder Alarm Systems

• Line-of-Sight IR Communication Projects

Why Choose TSOP1738 from Micron Robotics?

Micron Robotics offers genuine TSOP1738 IR receiver modules that deliver consistent performance, long operational life, and easy integration into electronic projects. Ideal for students, hobbyists, and professional developers looking for a reliable 38kHz IR receiver solution.
