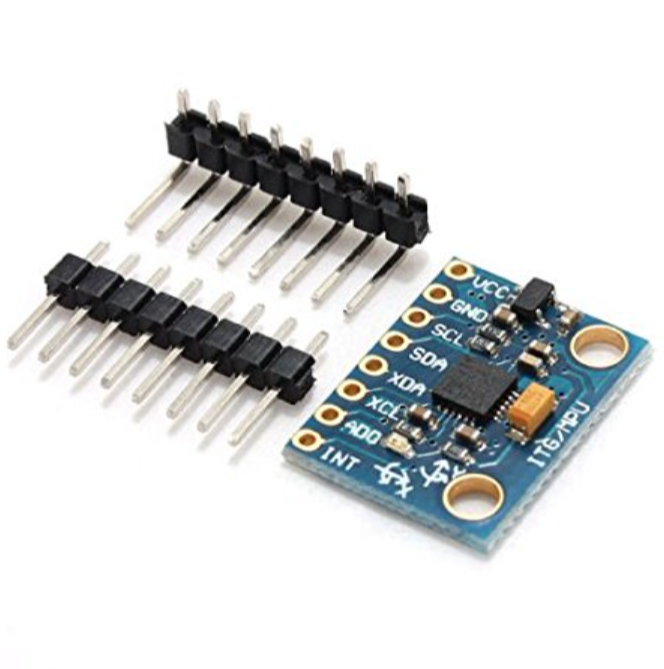

MPU-6050 Triple-Axis Accelerometer & Gyroscope Module

MPU-6050 Triple-Axis Accelerometer Gyroscope Module

The MPU6050 is an IMU (Inertial Estimation Unit) sensor, a portion of the Micro-Electro-Mechanical Systems (MEMS) family. It highlights a 3-axis accelerometer and a 3-axis gyroscope. The MPU-6050 module in addition called a magnetometer sensor.

It can identify acceleration up in three measurements (X, Y, and Z) and also measure angular velocity around those axes. This motion-tracking device is often used in applications such as detecting the orientation of a device, detecting movement, and measuring angular velocity. The Inertial measurement unit sensor contains some additional circuitry for interfacing with a microcontroller or other device.

The MPU6050 offers precise tracking for both quick and gradual movements. It includes a user-programmable gyroscope with a full-scale range of ±250, ±500, ±1000, and ±2000°/sec (DPS). Additionally, it features a user-programmable accelerometer with a full-scale range of ±2g, ±4g, ±8g, and ±16g.

Key Features  of MPU-6050 Triple-Axis Accelerometer Gyroscope Module

• I2C Digital Output of 6/9-axis MotionFusion data in various formats such as Euler Angle, Quaternion, Rotation Matrix, or Raw Data.
• Chip built-in 16-bit AD converter, 16-bit data output.
• Voltage Range: 2.3V to 3.4V.
• Selectable Jumpers: CLK, FSYNC, AD0.
• Gyro: ±250 to ±2000dps sensitivity.
• Accelerometer: ±2g to ±16g programmable range.
• DMP™ Engine: Offloads MotionFusion, sync, and gesture detection.
• Embedded Algorithms: Run-time bias and compass calibration.
• Digital Temperature Sensor: Output for temperature monitoring.

Differences Between MPU6000, MPU6050 and MPU6500:

• MPU6000 Sensor: Offers an 8 kHz sampling rate, supporting both SPI and I2C interfaces. However, the I2C interface might be insufficient for handling an 8 kHz gyro update due to its slower nature. It boasts improved vibration sensitivity compared to the MPU6500.
• MPU6050 Sensor: It offers an 8 kHz sampling rate and utilizes the I2C interface communication protocol. It exhibits superior vibration sensitivity compared to the MPU6500.
• MPU6500 Sensor: It offers a 32 kHz sampling rate and compatibility with both I2C and SPI interfaces. Due to increased sensitivity to vibrations, it may require additional vibration isolation methods for optimal performance.
