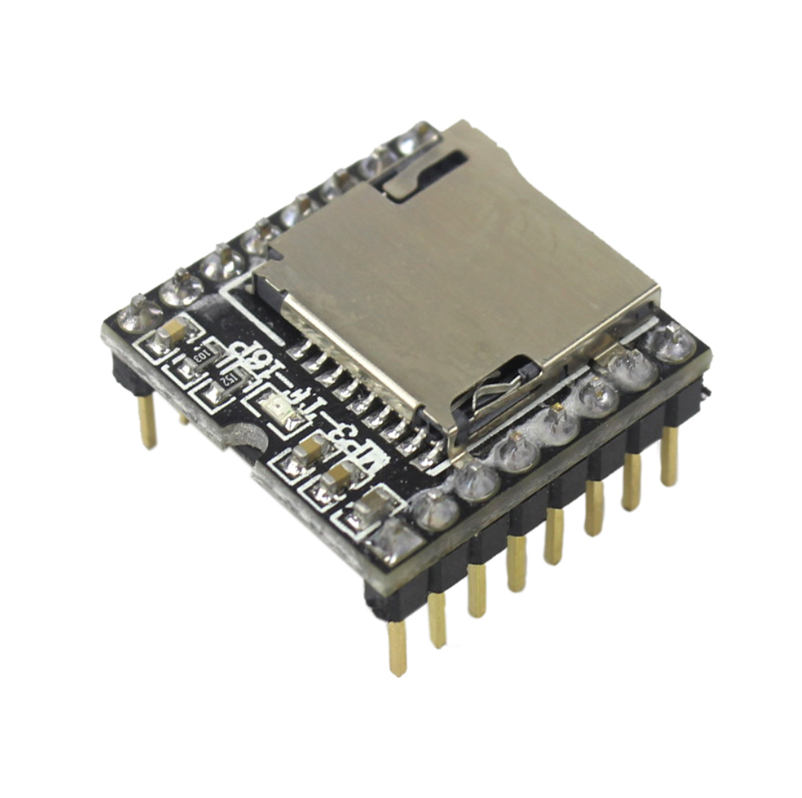

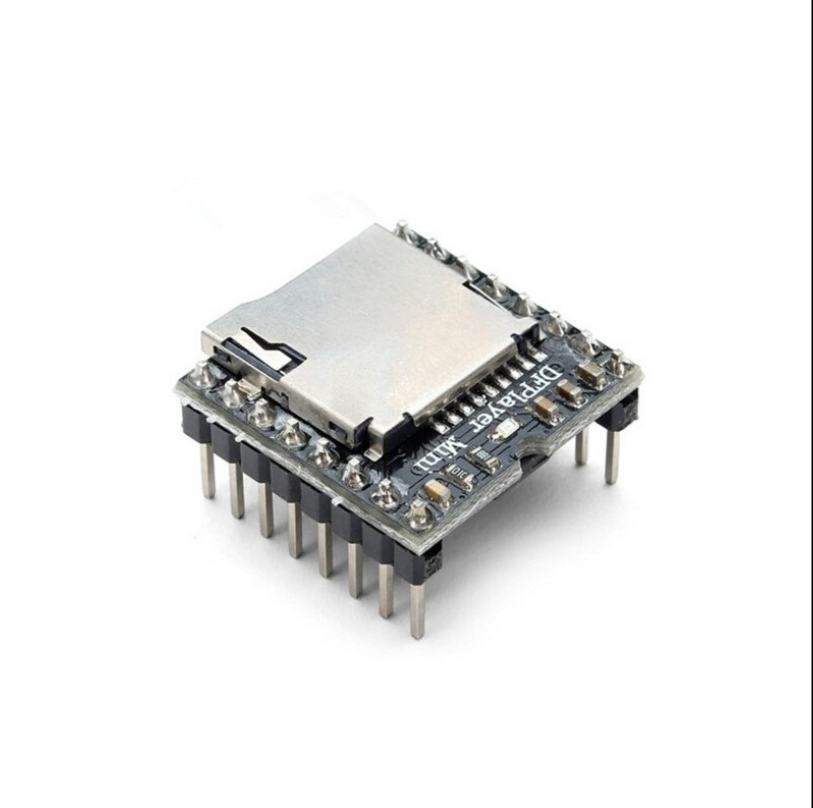

MP3-TF-16P MP3 SD Card Module with Serial Port

MP3-TF-16P MP3 SD Card Module with Serial Port – Micron Robotics

The MP3-TF-16P MP3 SD Card Module from Micron Robotics is an advanced, low-cost audio playback module designed to simplify sound integration into embedded systems and DIY electronics projects. With a built-in serial communication interface, it can easily connect with Arduino, Raspberry Pi, or other microcontrollers for seamless control.

This versatile mp3 tf 16p module supports a variety of audio formats such as MP3, WAV, and WMA, ensuring high-quality playback with a 24-bit DAC output, delivering a dynamic range of up to 90dB and 85dB SNR. Its built-in support for FAT16 and FAT32 file systems allows direct access to music files stored on a TF card (up to 32GB) or USB flash drive.

Whether you’re creating a voice prompt system, alarm alert, or multimedia project, the mp3 tf 16p arduino module offers multiple control modes — including IO control, AD key control, and serial command mode — making it extremely user-friendly and flexible.

 Key Features of MP3-TF-16P MP3 Module

• Supports MP3, WAV, and WMA audio formats
• Works seamlessly with Arduino and other microcontrollers
• Supports FAT16/FAT32 file systems
• TF card storage up to 32GB
• High-quality 24-bit DAC output with 90dB dynamic range
• Multiple control options: Serial / IO / AD Key
• Compact design for embedded applications
• Plug-and-play compatibility

Technical Specifications of MP3-TF-16P MP3 SD Card Module with Serial Port

• Sampling Rates: 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 KHz
• Audio Output: 24-bit DAC, SNR: 85dB, Dynamic Range: 90dB
• Supported File Systems: FAT16 / FAT32
• Maximum TF Card Capacity: 32GB
• Supported U Disk: Up to 32G, 64M bytes NORFLASH
• Control Modes: IO, Serial, AD Key

Applications of MP3-TF-16P MP3 SD Card Module with Serial Port

• Car Navigation Voice Playback
• Voice Prompts for Toll Booths & Transport Systems
• Public Announcement Systems in Bus/Train Stations
• Security Check & Access Control Systems
• Industrial Equipment Alarm Voice Notifications
• Fire Alarm & Emergency Warning Systems
• Automatic Broadcasting Systems
• Arduino Projects with Voice Feedback
• Electric Sightseeing Vehicles Voice Alerts
