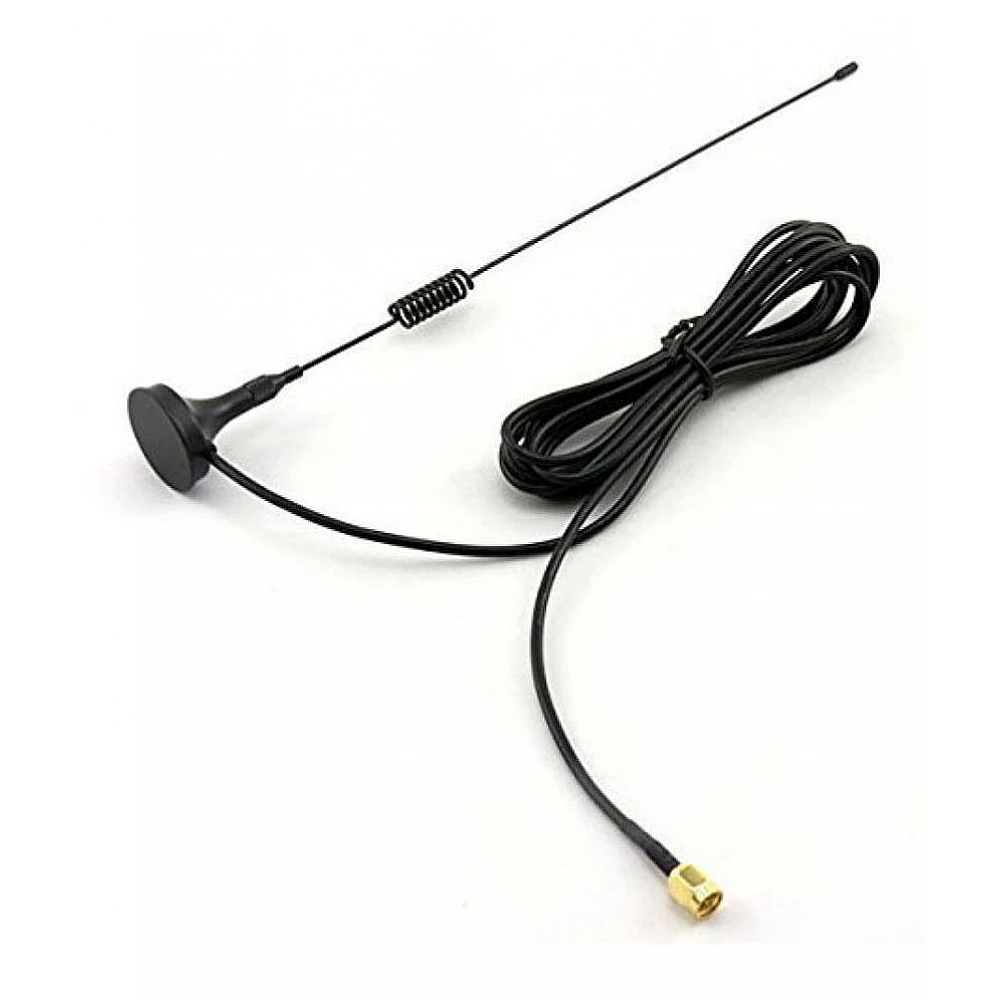

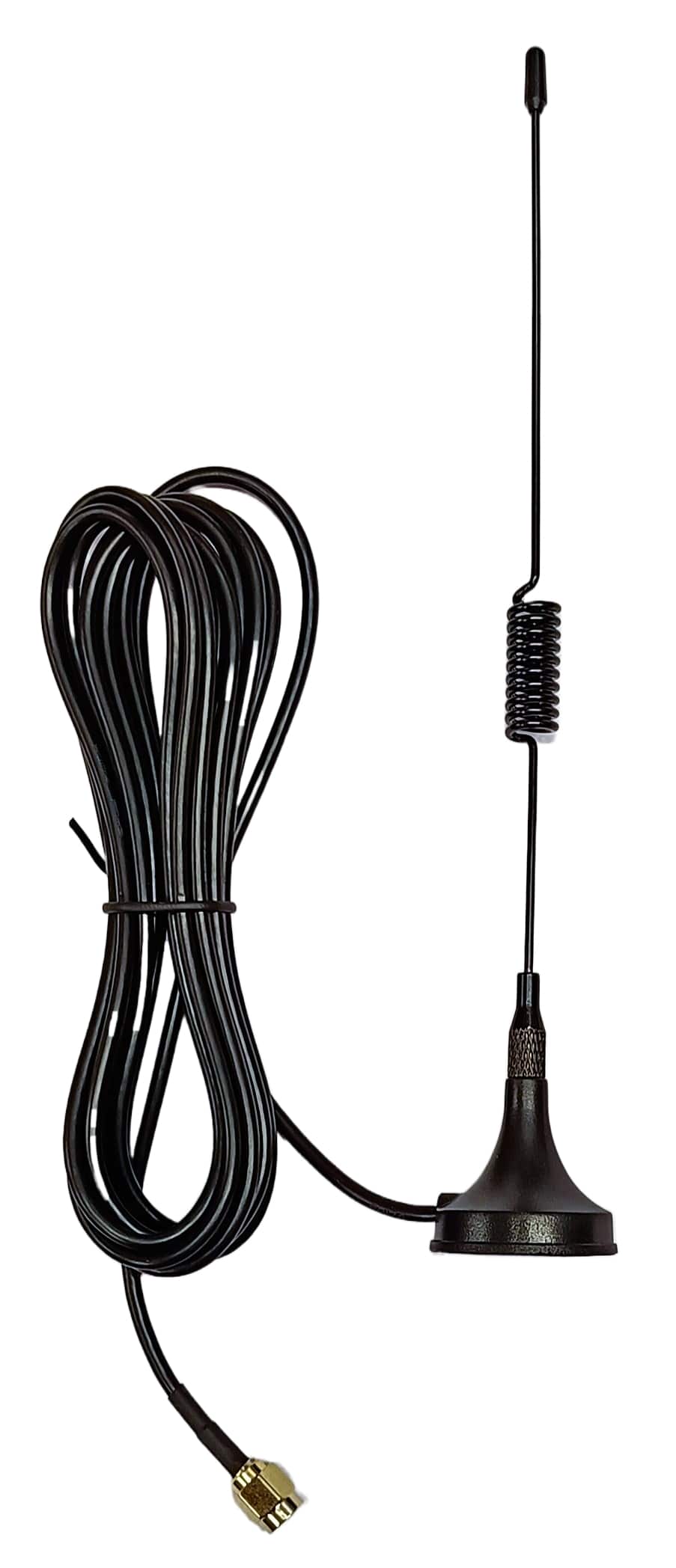

Boost your GSM signal with the AN-88-D Magnetic Mount Spring Antenna.

Designed for communication systems operating on GSM/GPRS 900/1800MHz, this compact and high-performance antenna delivers 3dBi gain for enhanced reception and transmission. Built with a durable magnetic base and spring design, it offers easy installation on any metallic surface, ensuring stable connectivity for your critical GSM applications.

The AN-88-D antenna is widely used in industrial and commercial GSM-based applications including GSM modems, repeaters, IoT devices, and remote monitoring systems. It features a robust construction for reliable operation in extreme temperatures ranging from -40°C to 60°C.

GSM 3DBI Magnetic Mount Spring antenna Electrical Specifications:-

• Frequency range(MHz) 900-1800
• Bandwidth (MHz) 70/170
• Gain (dBi) 3
• VSWR ≤2.0
• Input Impedance(Ω) 50
• Polarization Vertical
• Maximum input power(W) 50
• Input connector type SMA Male or Requested

GSM 3DBI Magnetic Mount Spring antenna Mechanical Specifications:-

• Dimensions(mm) 30×200
• Antenna weight(g) 50
• Mounting way Magnetic adsorption
• Operating temperature(°c) -40~60

Applications of GSM 3dBi Magnetic Mount Spring Antenna – AN-88-D:

• GSM/GPRS modems
• GSM repeater systems
• Remote monitoring & telemetry
• IoT devices using GSM networks
• GSM sensors and controllers
• M2M communication modules
• Vehicle tracking systems
• Wireless alarm systems
