Premium Quality 12x12x5 mm Tact Switch for Electronics
Upgrade your circuit design with the KFC-012-5.0 4 Pin Tact Switch (12x12x5 mm) – a compact, high-precision electronic switch built for efficiency and durability. With a tactile response and long operational life of over 100,000 cycles, this 12x12x5 mm tact switch is perfect for low-power electronic circuits where reliable momentary contact is required.

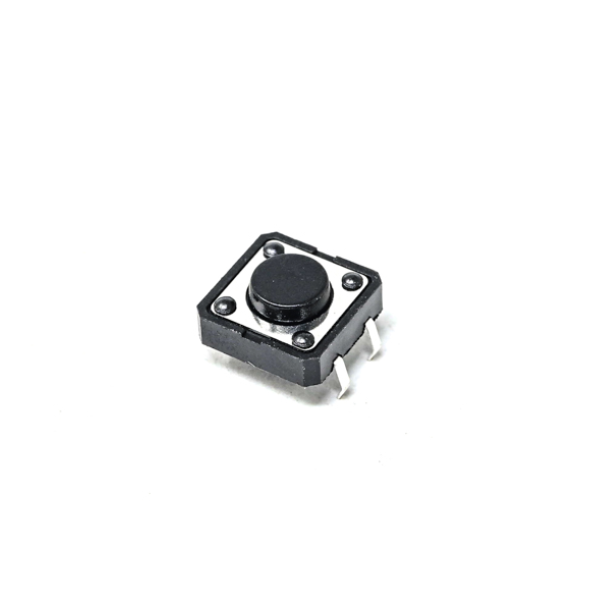

The KFC-012-5.0 features a top push operation, black stem with 5.0 mm height, and a sharp tactile feel. Designed for quick snap-in PCB mounting, it ensures stable contact resistance and smooth operation even under varying pressure conditions.
Commonly used in consumer electronics, industrial controls, and embedded systems, this switch guarantees solid feedback and performance. Whether you’re prototyping or producing at scale, this 4 pin tact switch is the ideal choice for quality and affordability.
Specifications of 4 Pin Tact Switch 12x12x5 mm – KFC-012-5.0
- Type: Snap-in
- Operating Force: 180/250±30gf
- Travel: 0.25mm
- Contact Resistance: ≤ 100mΩ
- Operating Life: > 100,000 cycles
- Rating: Max 50mA 12V DC / Min 10µA 1V DC
- Operating Temp: -25℃ to +70℃
- Stem Height: 5.0 mm
- SPQ: 1,000pcs
- OEM/ODM: Available
Ideal Applications of 4 Pin Tact Switch 12x12x5 mm – KFC-012-5.0
- Embedded system interfaces
- Consumer electronics (TVs, remotes, audio devices)
- Industrial control panels
- DIY electronic projects
- Development boards (Arduino, Raspberry Pi)
- Keypads and control systems
