Temperature Sensor
Showing all 8 results
-
Sensors, Temperature Sensor
Flame Sensor Relay Module
It is a Flame Sensor Relay Module. The flame sensor can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test. The detection angle of 60 degrees, the flame spectrum particularly sensitive Sensitivity adjustable (shown in blue digital potentiometer adjustment). The comparator output directly triggers the relay.
The output bluish Terminal Block for convenient connections.
SKU: n/a -
Sensors, Temperature Sensor
DS18B20 Temperature Sensor Module
DS18B20 Temperature Sensor Module is a digital temperature sensor, and you can easily connect it to Arduino with only one 4.7-pound resistor, base 1 Ground 2 Output Base 3 to the positive of the source, with resistance to base 2 Is connected. The connection of this sensor to the Arduino via the 1-wire protocol is established. Therefore, several sensors can be connected only through one common wire to Arduino. The output is digitally accurate to 12 bits. Therefore, the temperature can be measured with a precision of 0.0625 C.
SKU: n/a -
Sensors, Temperature Sensor
Digital Temperature Module For Arduino AVR PIC DIY Maker
The simple circuit of digital temperature module and integrated LED connecting to digital 13 interfaces to make temperature indicator light. Use number 13 interface to connect the integrated LED, connect a digital temperature sensor to the number 3 interface. When the digital temperature sensor senses key signal, the LED is on, otherwise, its out.
SKU: n/a -
Sensors, Temperature Sensor
DHT22 AM2302 Digital Temperature and Humidity Sensor
DHT22 AM2302 Digital Temperature & Humidity Sensor is a low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin (no analog input pins needed).
Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so sensor readings can be up to 2 seconds old. Simply connect the first pin on the left to 3-5V power, the second pin to your data input pin and the rightmost pin to ground. Although it uses a single-wire to send data it is not Dallas One Wire compatible! If you want multiple sensors, each one must have its own data pin!Simply connect the first pin on the left to 3-5V power, the second pin to your data input pin and the rightmost pin to ground. Although it uses a single-wire to send data it is not Dallas One Wire compatible! If you want multiple sensors, each one must have its own data pin!
SKU: n/a -
Sensors, Temperature Sensor
AMT1001 Resistive Humidity and Temperature Sensor Module
AMT1001 Resistive Humidity and Temperature Sensor Module in which AMT1001 is an integrated temperature and humidity sensor; sensor signals using analog voltage output.
This module has high accuracy, high reliability, consistency; and has been with temperature compensation to ensure long-term stability, ease of use and low price and other characteristics; especially suitable for the quality, cost requirements more demanding businesses.
SKU: n/a -
Sensors, Temperature Sensor

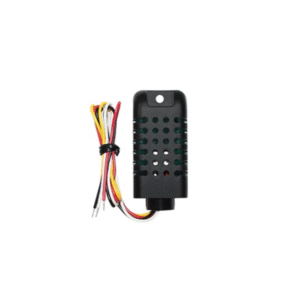

AM2301 Not Waterproof Temperature and Humidity Sensor for Sonoff TH10A/TH16A
Sensors, Temperature SensorAM2301 Not Waterproof Temperature and Humidity Sensor for Sonoff TH10A/TH16A
Sonoff TH10/TH16 is a wireless temperature and humidity monitoring switch that can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 10A or 16A.
Sonoff TH10/TH16 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of the environment falls within the range, it will automatically turn on or off the connected devices.
SKU: n/a -
Sensors, Temperature Sensor
5-Channel Flame Sensor Module
5-Channel Flame Sensor Module is a 5 channel flame detector module used to detect flame in the larger area( >120 degrees).
If you need a robot which should detect any fire around, then this module will be very useful for you. It detects the fire with 5 flame sensors which are arranged with 30 degrees.
This module outputs an analog signal, which would be more precise, and also digital signal which would be more easy to use, you can adjust the digital output sensitivity by the onboard potentiometer. The 5 LED indicators are helpful in your debugging, the high-precision resistors also make this sensor more precise than other flame sensors.
This module is sensitive to the flame and radiation. It also can detect ordinary light source in the range of a wavelength 760nm-1100 nm. lighter flame test distance of 80cm, for the greater the flame, the farther the distance test.
SKU: n/a -
Sensors, Temperature Sensor
4PIN NTC Thermistor Temperature Sensor Module
NTC Thermistor temperature sensor module is low cost, small size module. It is very sensitive to ambient temperature. It is generally used to detect the temperature of the surrounding environment. Through potentiometer adjustment, it is possible to change the temperature detection threshold.
DO output can be directly connected to the microcontroller to detect high and low, by detecting temperature changes in the environment.
The temperature detection range of the module is between 20 and 80 degrees Celsius. This module can be replaced with a line temperature sensor for controlling the water temperature, water tank, etc.
Generally, the 4 wire method of thermistor measurement is the most accurate because there is effectively no current flowing in either of the measurement cable wires and therefore no added resistance due to the cable wires.
SKU: n/a
